Products

Black Flag Oil Tools 8” Valve

  • API 6D
  • Provided with full MTRs, COCs, and Test Charts.
  • Class 900 rated for 2250 psi.
  • Bi-directional, Double Block and Bleed and Fail in Last Position.
  • 9” 3M RTJ Flanges
  • Two Forged Lift Eyes facilitate level lifting
  • Valve Actuator is fitted with a Position Indicator

Black Flag Oil Tools 8 Inch Valve Specs PDF



Black Flag Oil Tools 6” Valve

  • API 6D
  • Provided with full MTRs, COCs, and Test Charts.
  • Class 900 rated for 2250 psi.
  • Bi-directional, Double Block and Bleed and Fail in Last Position
  • 7-1/16” 3M RTJ Flanges
  • One of the most compact Valve/Actuator sets in the industry
  • Swivel Lift Eye to facilitate level lifting
  • Valve Actuator is fitted with a Position Indicator

3-D Model

Black Flag Oil Tools 6 Inch Valve Specs PDF

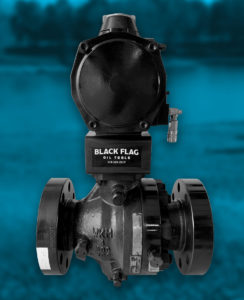

Black Flag Oil Tools 4” Valve

  • API 6D
  • Provided with full MTRs, COCs, and Test Charts.
  • Class 900 rated for 2250 psi.
  • Bi-directional, Double Block and Bleed and Fail in Last Position
  • 4-1/16” 3M RTJ Flanges
  • One of the most compact Valve/Actuator sets in the industry
  • Swivel Lift Eye to facilitate level lifting
  • Valve Actuator is fitted with a Position Indicator

Black Flag Oil Tools 4 Inch Valve Specs PDF

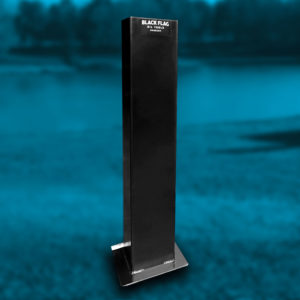

Black Flag Oil Tools Valve Control Stand

  • Designed “worm proof.”
  • Separator, Regulator, Pressure Gauge are housed inside the durable outer shell
  • Four bolts from the top plate allows removal of the inner housing to access the separator and regulator
  • Three labeled quick connect lines (air supply, open and close) are stubbed out of the back of the control stand for ease of rig up
  • Ideal valve function psi is pre-set in the shop to
    alleviate tampering in the field
  • The control switch at the top of the control stand is recessed 4” to protect it from damage in the event of getting knocked over or dropped
  • Clear Open and Close Indicators
  • Lift eye installed

3-D Model



Black flag oil tools spools and tees

















  • 4-1/16” 3M x 4-1/16” 5M Adapter Spool



















  • 7-1/16” 3M FLANGED TEE



SPACER SpoolS

drilling spacer spool

ADAPTER SPOOLS

drilling adapter spool



DOUBLE STUDDED ADAPTERS

Available in all sizes
